MTP / MPO Fiber Optic Patch Cord with High Performance

Payment Terms:	T/T,L/C,D/A,D/P
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Packing: 1pcs/bag

Application: Networking

Brand Name: TESO

Mode: Multi, Single

Production Capacity: 1000000pcs/month

Delivery Date: 3-5days

Type: Optical Fiber

Certification: CE, RoHS

1. MTP/MPO fan-out Fiber optic patch cords.
2. Available for FC.SC, LC,ST, MU^types.

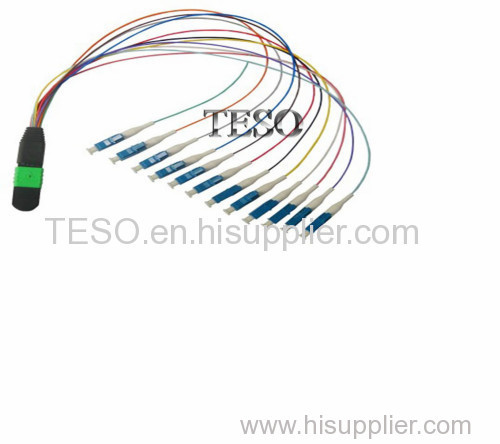

MTP / MPO Fiber Optic Patch Cord High Performance With 12 Core

Quick Detail:

1. MTP/MPO fan-out Fiber optic patch cords.

2. Available for FC.SC, LC,ST, MU…types.

3. Fiber type:9/125um(SM), 50/125um(MM-OM2),62.5/125um(MM-OM1),available for OM3.

4. Cable material: PVC or LSZH.

5. Length customized, 1M, 2M…..etc.

6. All parts are RoHS compliant.
.

Application:

＊CATV

＊Video

＊Active Device Termination

＊Premise Installations

＊Telecommunication Networks

＊Local Area Networks (LANs)

＊Data processing networks

＊Wide Area Networks (WANs)

＊Industrial media & military

Features

＊Low insertion loss

＊High return loss

＊Good repeatability and interchangeability

＊Compliant with Telcordia GR-326-CORE

＊One-piece construction & pull-proof design

＊Free-floating ceramic ferrule.

Description:

＊Multi-Core cable fan-out jumper and pigtail fan out multi-core (4, 6, 8, 12 cores) cable to individual fibers jumper with connector end face to realize connection between multi core cables it is convenient and stable for connection.

＊Fiber optic patch cord are with various kinds of cables PVC, Riser, Plenum,OFNR, OFNP, LSZH (LSOH), 10 Gig Aqua.

＊There are simplex, duplex and multi fiber cable assemblies, and there are ribbon fan out fiber cable assemblies and bundle fiber optic cable assemblies.

Specification

Parameters	Test Condition			Value(dB)
Parameters	Test Condition			Multi mode	Single mode
Insertion Loss	0.85/1.3um or 1.31/1.55um			0.3	0.3
Return Loss	0.85/1.3um or 1.31/1.55um			35	50 (APC 60)
Interchangeability	Connect Randomly			<0.2	<0.2
Vibration	5~50Hz, 1.5mm Amplitude			<0.1	<0.1
Tensile Strength	0~15Kgf (0.9mm Exception)			<0.1	<0.1
High Temperature	+85	During 100 Hours		<0.2	<0.2
Low Temperature	-40	During 100 Hours		<0.2	<0.2
Temperature Cycle	-40	~+85	during 5 Cycles	<0.2	<0.2
Humidity	25	~+65	93%R H, 100 hours	<0.2	<0.2
